Sheet Manager - User Guide & Reference

The Sheet Manager utility (Sheets category) Sleek sheet hub and viewport aligner. Manages sheet numbering, title block parameters, and Excel round-tripping. Features a placement engine to place multiple views onto sheets in a clean grid alignment based on sheet reference templates..

1. Overview & Key Capabilities

The Sheet Manager tool is designed to improve workflow efficiency by automating standard tasks. Key capabilities include:

• Sleek sheet hub and viewport aligner.
• Manages sheet numbering, title block parameters, and Excel round-tripping.
• Features a placement engine to place multiple views onto sheets in a clean grid alignment based on sheet reference templates.

2. Detailed Step-by-Step Usage

Follow these instructions to use the tool in your active Revit session:

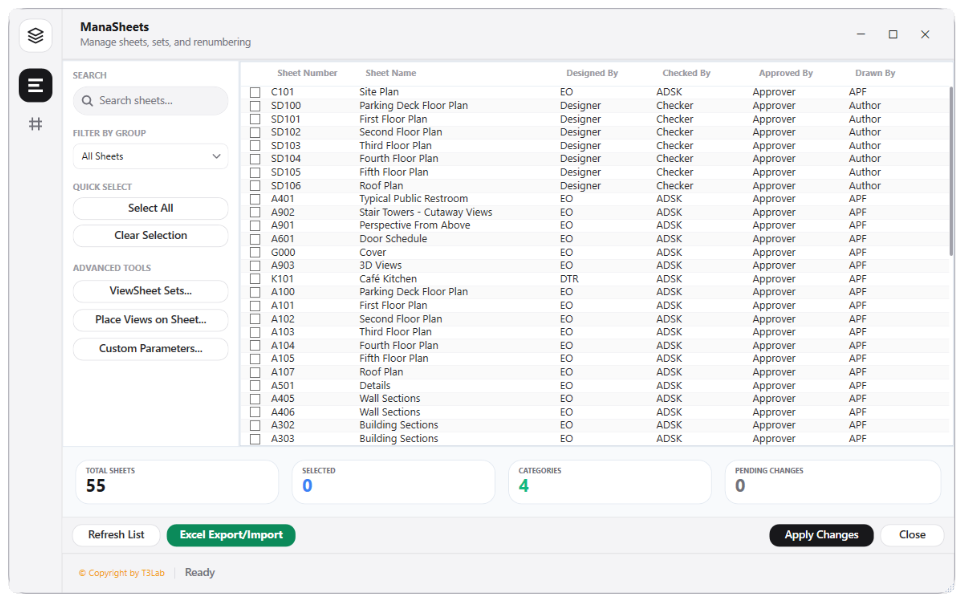

1. Launch Sheet Manager.
2. Under Sheet List, batch-rename sheet numbers and sheet names, or edit metadata in bulk.
3. Export sheet schedules to Excel, edit values, and import back.
4. Under Place Views tab, select views, select sheets, define grid layout (rows and columns), and click Auto Place.
5. Use Viewport Aligner to align viewport placements across different sheets to match a reference view location.

3. Technical Specifications & Under the Hood

Revit API Integration

• Key API Components: ViewSheet.Create and viewport coordinates placement (Viewport.Create). Grid alignment math handles paper-size spacing coordinates.
• Transaction Handling: All modifications are packaged into a single Revit API transaction. If any error occurs, the changes are rolled back automatically to preserve model integrity.

[!TIP] Best Practice Tip: Use viewport aligner to keep details in the exact same sheet location across multi-page structural drawing packages.
