MCP Control - User Guide & MCP Tool Catalog

The MCP Control utility provides a secure local gateway using the Model Context Protocol (MCP) developed by Anthropic. This protocol allows advanced desktop AI models (such as Claude Desktop, Cursor, Gemini CLI, Cline, Roo Code, etc.) to directly communicate and interact in real-time with Autodesk Revit running on your local machine.

---

1. Overview & Architecture

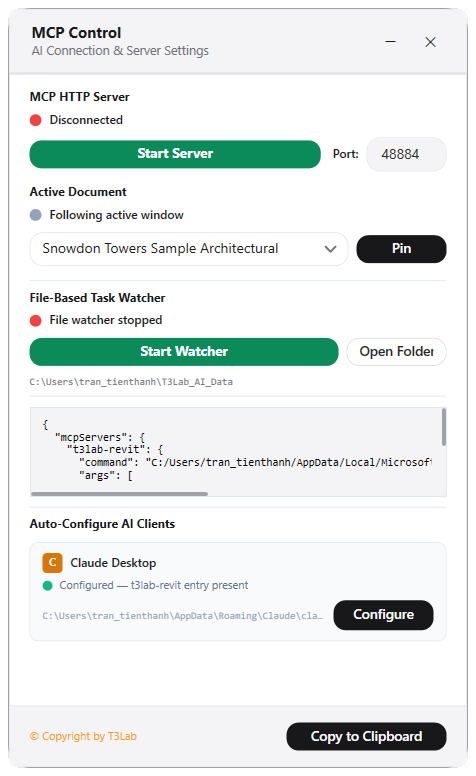

When you run MCP Control from the Revit Ribbon:

• A Local HTTP/SSE Server starts on port 48884 (or subsequent ports like 48885, 48886 if the default port is already occupied).
• Security & Authorization: On startup, a random security token (hex string) is generated and saved locally to %APPDATA%\T3LabAI\mcp_token.txt. Every request made from external AI clients must carry this token in the Authorization: Bearer <token> header. This prevents unauthorized processes or network requests from executing code inside your Revit session.
• Document Pinning: Allows you to lock AI tool execution onto a specific Revit project document, even if you switch active tabs or work with multiple open documents concurrently.

---

2. Installation & Setup Guide

Below is a flowchart summarizing the setup process for the MCP Control environment:

┌─────────────────────────────────┐
│ 1. Install Python               │ <── From Microsoft Store (Auto-registers PATH)
└────────────────┬────────────────┘
                 │
                 ▼
┌─────────────────────────────────┐
│ 2. Install Claude Desktop       │ <── SECURITY NOTE: DO NOT run as Administrator
└────────────────┬────────────────┘
                 │
                 ▼
┌─────────────────────────────────┐
│ 3. Install pyRevit Extension    │ <── Installs the T3Lab Revit ribbon toolset
└────────────────┬────────────────┘
                 │
                 ▼
┌─────────────────────────────────┐
│ 4. Open MCP Control in Revit    │ <── Open Revit -> Go to T3Lab tab -> Click MCP Control
└────────────────┬────────────────┘
                 │
                 ▼
┌─────────────────────────────────┐
│ 5. Start Server & Watcher       │ <── Click "Start Server" and "Start Watcher"
└────────────────┬────────────────┘
                 │
                 ▼
┌─────────────────────────────────┐
│ 6. Configure Claude Desktop     │ <── Click "Configure" to auto-write config JSON
└─────────────────────────────────┘

Detailed Setup Steps:

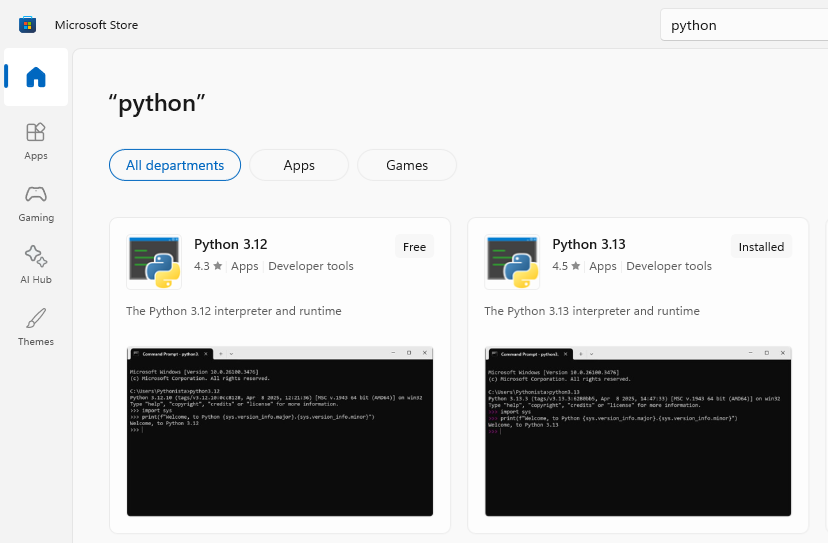

Step 1: Install Python from Microsoft Store

1. Open the Microsoft Store app on Windows.
2. Search for "Python".
3. Select Python 3.12 or Python 3.13 and click Get / Install to download and install.
4. Benefit: Installing Python from the Microsoft Store automatically registers the Python executable path to the Windows Environment Variables (PATH). No manual configuration is required.

Step 2: Install Claude Desktop (⚠️ Important Security Note)

1. Visit the official Anthropic website and download the installer for Claude Desktop.
2. When launching the installer (ClaudeSetup.exe), DO NOT run it as an Administrator. Install it under standard user privileges.
3. ⚠️ SECURITY WARNING:
   • If Claude Desktop is installed with Administrator rights, it will automatically install and enable Claude Co-worker (Claude Co-work).
   • Claude Co-worker is an advanced AI agent feature that can control your mouse, keyboard, and access files to manipulate your computer directly. If not carefully monitored, this could present significant system security risks.
   • Installing and running under standard user permissions guarantees that only the standard, secure Claude Desktop application is active.

Step 3: Install the pyRevit Extension

1. Ensure that you have pyRevit installed on your machine.
2. Install the T3Lab.Revit extension through pyRevit to integrate the Revit Ribbon tab containing the MCP Control and T3Lab Assistant tools.

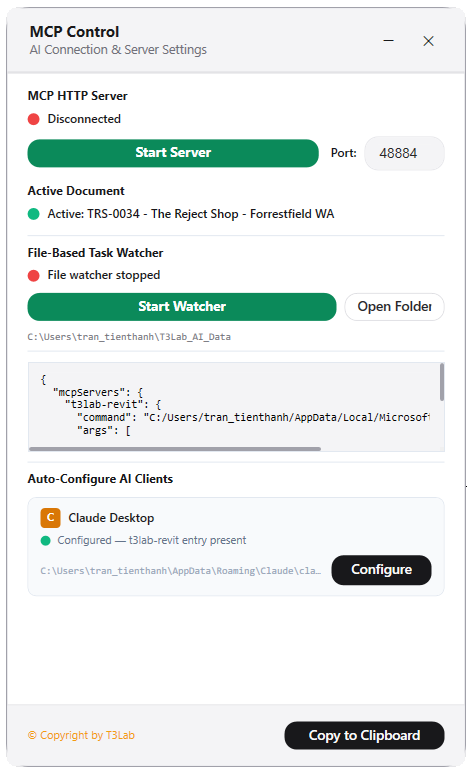

Step 4: Launch and Configure via MCP Control Console

1. Launch Autodesk Revit, go to the T3Lab tab on the Ribbon, and click MCP Control to open the management console.
2. In the MCP Control panel, perform the following actions:
   • Click Start Server: Starts the local server (default port 48884). The status indicator changes to green Connected.
   • Click Start Watcher: Starts the File-Based Task Watcher to listen to project file changes.
   • Click Configure (under the Auto-Configure AI Clients -> Claude Desktop section): This button automatically overwrites/updates the active port and security bearer token details in your Claude Desktop configuration file (claude_desktop_config.json).
3. Restart Claude Desktop. Claude will now be connected directly to your Revit session via the local MCP server without needing any manual copy-paste operations.

---

3. Manual Connection Guide

A. Connecting with Claude Desktop

Open or create your Claude Desktop configuration file at: %APPDATA%\Claude\claude_desktop_config.json

Add the t3lab-revit server config under mcpServers (you can copy the exact JSON snippet directly from the MCP Control console in Revit):

{
  "mcpServers": {
    "t3lab-revit": {
      "command": "python",
      "args": [
        "C:/Users/<YourUsername>/T3LabLite/lib/core/bridge.py",
        "48884"
      ]
    }
  }
}

Note: Make sure to replace <YourUsername> with your actual Windows username, and ensure the port matches the one displayed on the console.

B. Connecting with Cursor / VS Code (Cline / Roo Code)

• Configure an MCP server of type Command using the same command and arguments as above.
• Alternatively, connect via SSE protocol using the endpoint http://localhost:48884/sse along with the HTTP header: Authorization: Bearer <token_from_console>.

---

4. Supported MCP Tool Catalog

Here is the list of tools that an AI agent can invoke once connected to the Revit MCP Server, categorized by function:

Group 1: Model Query & Statistics

Tools designed to help the AI read the current state of the Revit model, query elements, or gather project data:

Tool Name	Description	Key Parameters
revit_get_active_view	Retrieves information about the currently active view (name, ID, scale, view template).	None
revit_get_selected_elements	Retrieves details about elements currently selected by the user in Revit.	None
revit_get_project_info	Retrieves general project parameters (Project Name, Number, Client, Address).	None
revit_list_views / revit_list_sheets	Lists all views or sheets available in the current document.	view_type (Optional filter)
revit_get_element_info	Retrieves detailed information, geometry, and coordinates of an element by its ID.	element_id (Required)
get_all_parameters	Lists all parameters (name, value, type, read-only flag) for a given element.	element_id (Required)
get_elements_by_level	Finds all elements of a specified category (e.g., Walls, Beams) on a given level.	level_name (Required), category
get_current_view_elements	Retrieves elements currently visible in the active view, optionally filtered by category.	category, limit (Default: 100)
get_material_quantities	Calculates material quantities (area/volume) for Walls, Floors, Roofs, or Ceilings.	category, level_name
ai_element_filter	Performs search by filtering elements of a category where a parameter matches a value.	category (Required), parameter_name, parameter_value
get_model_warnings / get_model_health	Retrieves active warnings, counts elements, and provides a health score of the model.	limit (For warnings)
list_levels / list_worksets	Lists all levels with elevations, or user worksets with their open/close status.	None
get_schedule_data	Reads a ViewSchedule and returns its data as a structured JSON table.	schedule_name or schedule_id

---

Group 2: Creation & Modeling

Tools supporting the generation and placement of new Revit elements:

Tool Name	Description	Key Parameters
create_level	Creates a new level at a specific elevation.	elevation (m), name (Level name)
create_grid	Generates a grid line system using a list of spacing intervals.	x_spacings (m), y_spacings (m), x_labels, y_labels
place_wall	Places a straight wall between two coordinate points on a level.	start_x, start_y, end_x, end_y (m), level_name, height
create_point_based_element	Places point-based elements (Doors, Windows, Furniture, Fixtures) at XYZ.	family_type, x, y, z (m), level_name, host_wall_id (For hosted items)
create_line_based_element	Places line-based elements (Beams, Columns, Pipes, Ducts) between two points.	family_type, start_x, start_y, end_x, end_y (m), level_name
create_surface_based_element	Creates a floor, ceiling, or roof from a closed boundary loop of XYZ points.	element_type ("floor"/"ceiling"/"roof"), boundary_points
room_to_floor	Automatically generates a floor matching the boundary curves of one or more rooms.	room_ids (or room_id), floor_type
create_room	Places a new Room element at a given XY location on a level.	x, y (m), level_name, name, number
create_view	Generates a floor plan, ceiling plan, or 3D isometric view.	view_type, level_name, name
create_sheet	Creates a new sheet with a title block family.	sheet_number, sheet_name, title_block
create_text_note	Adds a text annotation to the active view at a specified location.	text, x, y (m), font_size
create_dimension	Creates an aligned dimension line across a set of grid lines or references.	element_ids, offset
create_workset	Creates a new workset in a workshared model.	name (Workset name)

---

Group 3: Modification & Transforms

Tools used to modify element parameters, locations, and relationships:

Tool Name	Description	Key Parameters
set_parameter	Sets a single parameter value on a specific Revit element.	element_id, parameter_name, value
bulk_set_parameter	Sets a parameter value across multiple elements of a category with optional filters.	parameter_name, value, category, filter_parameter, filter_value
move_elements / copy_elements	Moves or copies elements by a translation delta vector.	element_ids, dx, dy, dz (m)
rotate_element	Rotates elements around a vertical Z-axis through a given origin.	element_ids, angle_degrees, origin_x, origin_y
split_curve	Splits a model or detail curve into multiple segments while preserving geometry.	element_id, segments, split_at_ratios
split_element	Splits a wall, beam, pipe, or duct into two elements at a point or ratio.	element_id, at_ratio, x, y
join_geometry	Joins or unjoins the intersecting geometry of two elements.	element_id_a, element_id_b, unjoin (Boolean)
delete_element	Deletes elements. Supports dry_run=true to preview cascade deletions.	element_ids, dry_run
rename_element	Renames a view, sheet, level, or other named Revit element.	element_id, new_name
operate_element	Selects, hides, unhides, or isolates elements in the active view.	operation ("select"/"hide"/"isolate"/"unhide"), element_ids
color_elements / revit_override_color	Color-codes elements by parameter values, or overrides element colors in a view.	category, parameter_name (Or color & element_ids)

---

Group 4: Automation & Advanced Utilities

Tools for automation, batch publishing, and custom script execution:

Tool Name	Description	Key Parameters
send_code_to_revit	Executes custom IronPython 2.7 code directly in the Revit API context.	code (Python code string)
apply_view_template	Applies a view template to one or more views.	view_ids, template_name
place_views_on_sheets	Automates placing multiple views onto sheets as viewport elements.	view_ids, title_block, sheet_id (Optional)
add_view_to_sheet	Places a view viewport onto an existing sheet at specified XY sheet coordinates.	sheet_id, view_id, x, y (in mm)
export_sheets_pdf	Exports sheets to PDF files in a destination directory.	sheet_ids, output_folder, combined (Boolean)
export_dwg / export_image	Exports sheets/views to DWG files, or saves views as high-resolution PNG images.	sheet_ids / view_id, output_folder, width
purge_unused	Identifies and purges unused family symbols and view templates.	dry_run (Boolean report)
say_hello	Opens a welcome dialog in Revit to verify that the MCP connection works.	message (Text content)
show_assistant_pane	Shows or hides the built-in T3Lab Assistant dockable panel in Revit.	action ("show"/"hide"), message

---

5. Key Notes & Best Practices

1. Safety Transactions: All model write operations are managed via Revit API transactions. If any tool call encounters an error mid-execution, the entire operation is rolled back to protect the model's integrity.
2. Python Execution Permissions: The send_code_to_revit tool gives the AI agent full access to the Revit API. While the server is secured locally using Bearer tokens, users should inspect script execution to ensure it does not enter infinite dialog loops which could freeze Revit.
3. Measurement Units: All modeling coordinate inputs (X, Y, Z, spacings, lengths) are standardized in meters (m). However, sheet coordinates and titleblock spacings in viewport placement tools (such as add_view_to_sheet) are measured in millimeters (mm) to match paper size standards.
